🌐 Connect Smarter, Control Faster — Your Serial Devices, Reimagined!

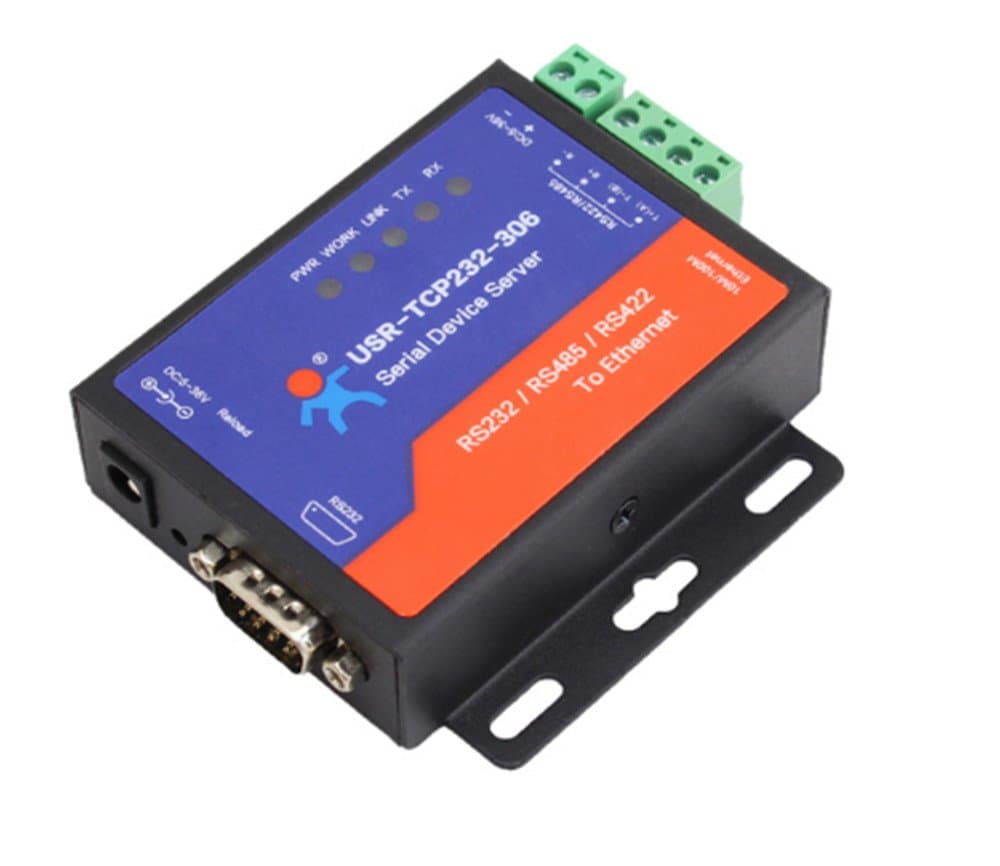

The USR-TCP232-306 is a versatile serial-to-Ethernet converter that supports RS232, RS485, and RS422 protocols, enabling bi-directional transparent data transmission over TCP/IP networks. Featuring 3 serial ports, 10/100Mbps Ethernet with Auto-MDI/MDIX, and configurable baud rates up to 2.3Mbps, it offers flexible network modes including TCP/UDP Server and Client. With DHCP support, heartbeat mechanisms, and a user-friendly web interface, it ensures reliable remote data acquisition, control, and management for professional-grade industrial and office applications.
| ASIN | B07G5P4CPR |
| Best Sellers Rank | #84,300 in Computers ( See Top 100 in Computers ) #206 in Serial Adapters |
| Brand | PUSR |
| Color | black |
| Compatible Devices | Monitor |
| Connector Type | Serial Adapter |
| Customer Reviews | 4.4 4.4 out of 5 stars (57) |
| Finish | Matte |
| Input Voltage | 12 Volts |
| Item Dimensions | 20 x 5 x 15 centimeters |
| Item Weight | 0.43 Kilograms |
| Manufacturer | generic |
| Model Number | USR-TCP232-306 |
| Number of Items | 1 |
| Number of Ports | 3 |
| Package Quantity | 1 |
| Specific Uses For Product | Network Connectivity for Serial Devices |
| UPC | 799975202006 614019488713 702669842730 610393788906 661787210428 |
| Unit Count | 1.0 Count |
| Warranty Type | Limited |
L**O
Dispositivo ben costruito; di facile programmazione. Attenzione però non c'è un software che gira su Windows che emula la porta seriale dove poi i vari software vanno a collegarsi, stile MOXA Nport, ma è un semplice TCP/UDP Server/Client. Quindi sarà poi il software stesso che utilizza la porta seriale che deve incapsulare il traffico da fare uscire/entrare dalla porta seriale verso l'indirizzo IP che avrete assegnato al dispositivo. Pagine web per la configurazione in lingua inglese.
P**N
Great product, easy to configured!
P**C
Works really well as a TCP client, though one star knocked off as the Tx/Rx LEDs seem to be reversed. Set-up is simple and the inclusion of power supply terminals (for standard 24VDC) is a real plus. it's a solid piece of kit too. One thing not mentioned in the product blurb is the availability of some additional test utilities from the manufacturers web page that allow the raw traffic through the converter to be analysed. That proved really useful and is something lacking in some converters costing 10x the cost.
B**S
TCP Server mode worked exactly as expected. I am able to send raw data via tcp sockets to the device, and it simply forwards it along out the serial port. A response/acknowledgement is forwarded right back through the opposite direction. Setup was quick and easy. The missing star is for latency. I am seeing up to a few whole seconds before my data is passed through to the serial endpoint. The response is sent back almost instantly, so I’m not entirely sure wherein lies the bottleneck. Not disappointed given the price of the unit. Update: After some more experimenting, I found that the latency I was experiencing was the unit trying to accept NEW connections from remote clients (I was creating a new socket connection for every request). If you allow your connections to persist, the response is appropriately speedy.
L**.
La instalación es sencilla y cumple perfectamente. Adiós cable serie y complicaciones de envío de datos a múltiples dispositivos.
